FUELING SYSTEM
Prices range from:
- For a 12000 gallon Fireguard 3 compartment split systems - Rough Estimate 80k
- For a 20000 gallon Fireguard 3 compartment split systems - Rough Estimate 105k
- Smaller and Larger can be accommodated
- Use these two sizes and rough estimate prices to get some kind of idea for specific size you have in mind

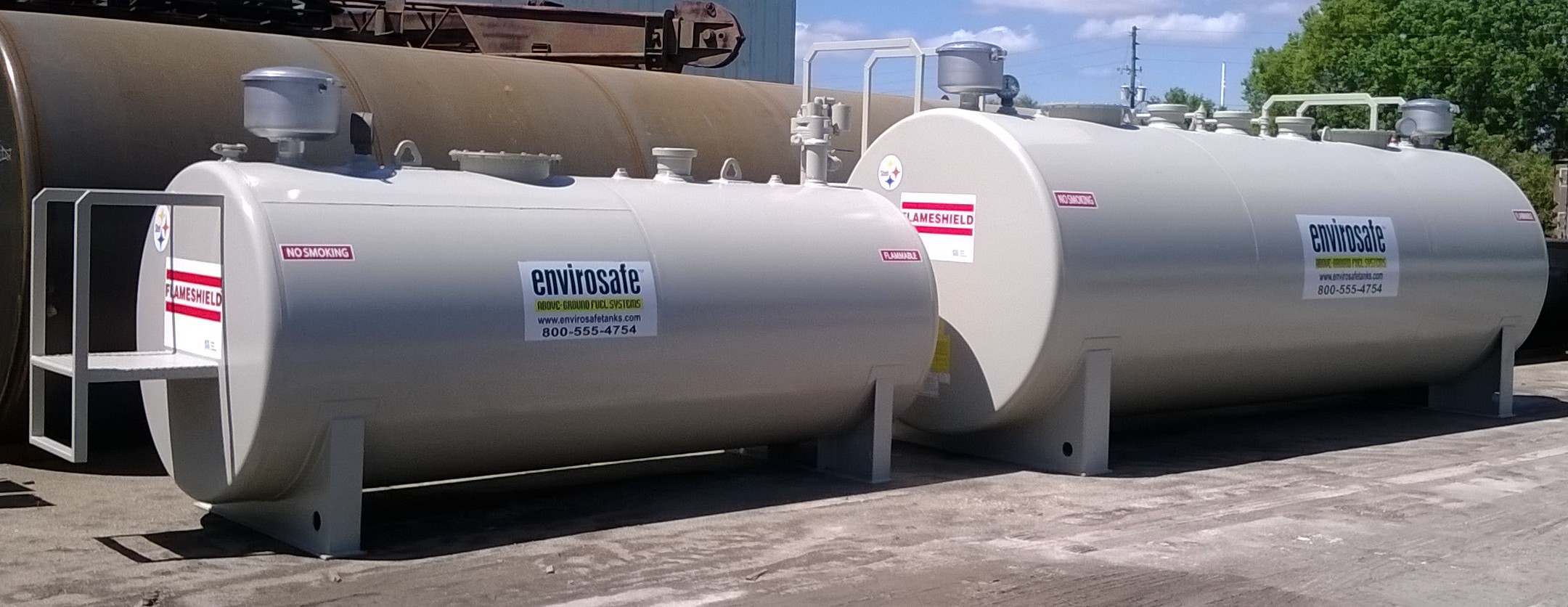

Envirosafe™ Fuel System
Fireguard 20,000 Gallon Dispenser 2
Note:
3 Compartment Split Tank. 133 5/8” Diameter x 386 5/8” Length Weight: 39,500 Lbs
Note:
UL 2085 Passes Requirements for NFPA 30-30A Included 2 Hour Fire Tested, Impact and Ballistic Tested.
Qty Included Items
- 1 Fireguard 20,000 Gallon 3 Compartment Split Tank Mounted on Saddles
- 4 10" 8oz/sq.in. Emergency Vent Female
- 3 3” Stack Vent (12’ above grade)
- 3 2” 918S Clock Gauge w/ Alarm & Standard Float for Accurate Fuel Level Reading
- 1 UL Listed Lockable Fill Box Mounted on Tank 3’ x 4’ x 3’, Cross Broken for Easy Drainage, 2” Vent
- 3 Monitoring Well with 2” Cap
- 1 Engineered Hurricane Tie Down
- 3 Tank Decal Kit
- 1 Epoxy Primer & Acrylic Polyurethane Coating for High Performance Finish
- 3 FE Petro 3/4 Hp. Pump Assy w/ Anti-Syphon Valve & Ball Valve w/ Smart Controller
- 1 121”-144” Interstitial Leak Gauge
- 3 Morrison Bros. High Level Shut-off valve with 3” Ground Level Fill
- 3 18” Man way for easy inner tank accessibility
- 1 ROM Door (Roll Up) 3’x3’
- 1 Ladder with Safety Shield
- 1 UL 2085 Labeled & Listed
- 2 Split System
STEEL THICKNESS 1/4” SHELL & 5/16” HEAD
*All Equipment and Piping Installed at Factory*
